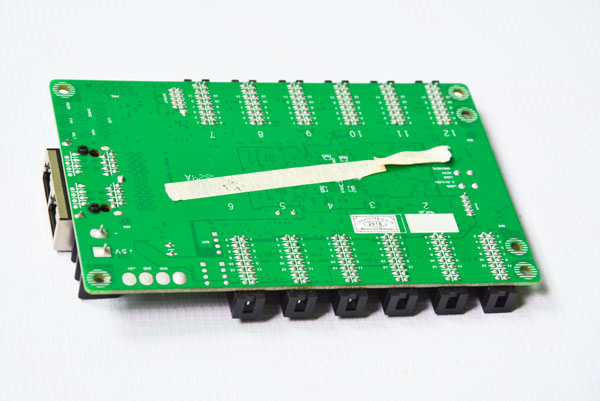

LINSN RV908M32 LED Receiving Card

LINSN RV908M32 LED Receiving Card Support 1/32 Scan For HD Indoor led display module. RV908M with HUB75 Interface is designed for standardized led display products, DO NOT NEED LED Hub Card,The functionality is fully compatible with the RV901 led receiving card, the same size, equial to the RV901 plus HUB75 hub card.

The LINSN RV908M32 LED Receiving Card have 12 PCS HUB75E and Support 1/32 Scan way for the indoor led module such as p2.5mm,p3mm.

Function
RV908M32 is built for the standardization manufacturer, integrated
with hub card whose size is the same as RV901 and it is
compatible with RV901. The function of RV908M32 is similar to
the one of RV901 plus a hub75 card, but RV908M32 supports up
to 32 scan mode.

1) 12 hub75 interface on board(supports 32 scan mode)，no
extra hub card needed;
2) Supports 12-bit HDMI colors input (required the 9th
generation sending card);
3) Using18-bit signal processor, maximum support 18-bit
(260,000) gray (each of red, green and blue);
4) Single card maximum support 1024×768 pixels Please
note that there are recommended values depending on the design of
LED screen）；
5) Single card can output 24 groups RGB data；
6) Supports 138 decode, 595 serial decode and so on. 7) Supports pixel-by-pixel brightness and color calibration;
single-card color space conversion；
8) High refresh rate and high grey level with most of the
driver ICs;
9) Supports general driver ICs and most of the PWM driver
ICs
10) Support hot backup with dual receiver cards for
demanding performances screen;
11) Support network cable BER test；
12) In line with RoHS standards
