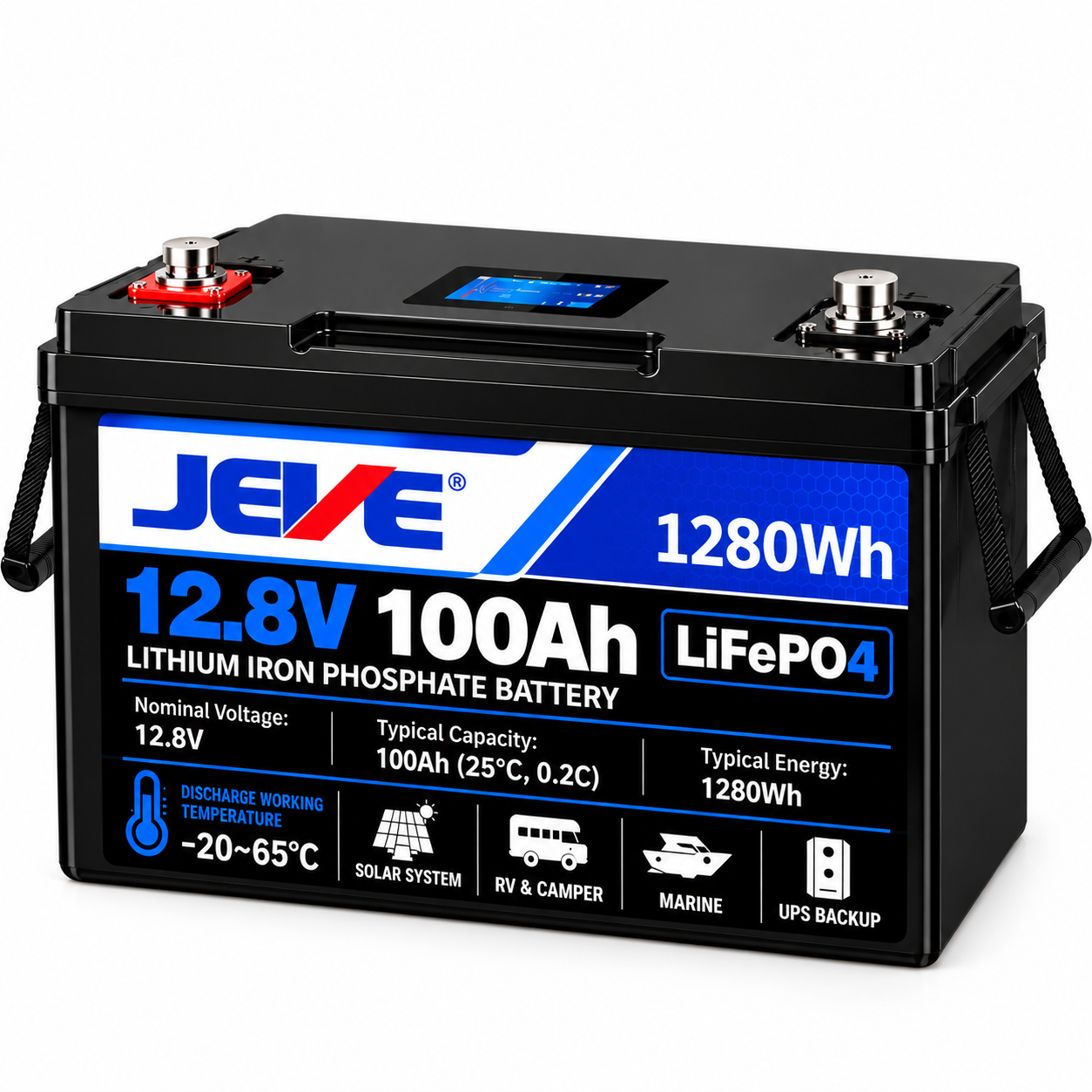

JEVE 12.8V 100Ah LiFePO4 Lithium Battery

JEVE 12.8V 100Ah LiFePO4 Lithium Battery

  • Brand: JEVE
  • Battery chemistry: Lithium Iron Phosphate (LiFePO4)
  • Nominal voltage: 12.8V
  • Capacity: 100Ah
  • Nominal energy: 1,280Wh (1.28kWh)
  • Rechargeable lithium battery
  • Designed for compatible solar energy storage and UPS backup applications
Description
Specification Details
Brand JEVE
Model MAL12.8V100Ah
Product Type Lithium Iron Phosphate Battery Pack
Battery Chemistry LiFePO4
Nominal Voltage 12.8V
Typical Capacity 100Ah (25°C, 0.2C)
Typical Energy 1280Wh (1.28kWh)
Gravimetric Energy Density About 120Wh/kg
Dimensions (L × W × H) 260 × 167 × 210 mm (±3 mm; rated parameters, page 2)
Dimensions (Appearance Section) 260 × 167 × 215 ± 2 mm (page 3; differs from page 2)
Reference Weight 9.5 ± 1 kg
Case Material ABS
Bluetooth Monitoring Capacity, voltage, current, cycles, SOC, SOH, cell voltage, temperature and status
Cycle Life >4000 cycles (80% DOD)
Charge Method CC/CV
Charge Voltage Range 14.3–14.6V
Maximum Continuous Discharge Current 100A
Maximum Continuous Charge Current 100A
Discharge Pulse Current 200A for 3 seconds
End of Discharge Voltage 10.8V
Charge Temperature 0°C to 60°C
Discharge Temperature −20°C to 65°C
Storage Temperature −10°C to 40°C
Protection Class IP65
BMS Protection Functions Overcharge, over-discharge, overcurrent, temperature and short-circuit protection
BMS Maximum Continuous Charge Current 100A
BMS Maximum Continuous Discharge Current 100A
Overcharge Detection Voltage 3.75 ± 0.05V per cell
Overcharge Release Voltage 3.45 ± 0.05V per cell
Over-discharge Detection Voltage 2.3 ± 0.05V per cell
Over-discharge Release Voltage 2.90 ± 0.10V per cell
Overcharge Current Protection 102A; protection delay 5 seconds
Over-discharge Current Protection 1 110A; protection delay 10 seconds
Over-discharge Current Protection 2 300A; protection delay 300–600 ms
Short-circuit Protection Supported; delay 300–800 μs; release by cutting load and charging
Charging Temperature Protection 65 ± 5°C; release at 55 ± 5°C
Discharging Temperature Protection 70 ± 5°C; release at 60 ± 5°C
Terminal Configuration Red positive (+), black negative (−)
Terminal Connection Common charging/discharging port
Terminal Post Inner Diameter 8 mm
Capacity Test Requirement Capacity ≥100Ah
Internal Resistance ≤35 mΩ
Charge Retention Capability ≥80% under specified 28-day test
Charge Recovery ≥90%
Packaging Quantity 1 battery per box
Carton Net Weight 9.7 kg (carton label)
Carton Gross Weight 10.5 kg (carton label)
Carton Dimensions 360 × 220 × 276 mm
Storage Recommendation Store at 40%–60% charge in a clean, dry, ventilated room at −5°C to 25°C; charge/discharge monthly during storage as specified
Warranty Not specified in the supplied datasheet
